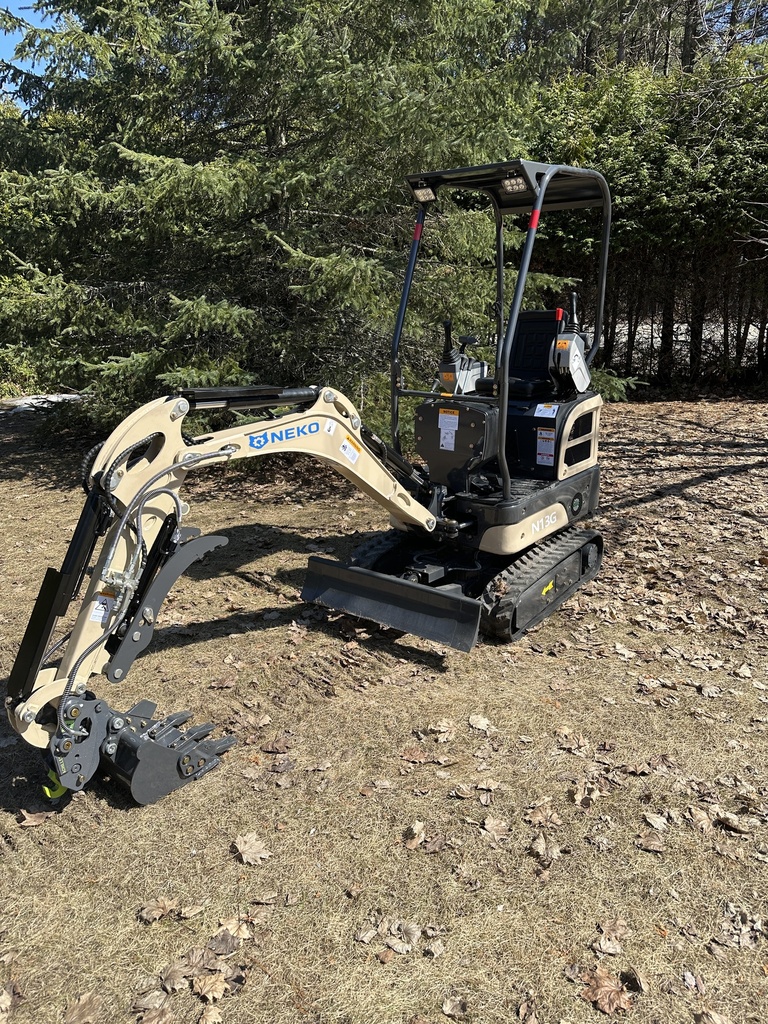

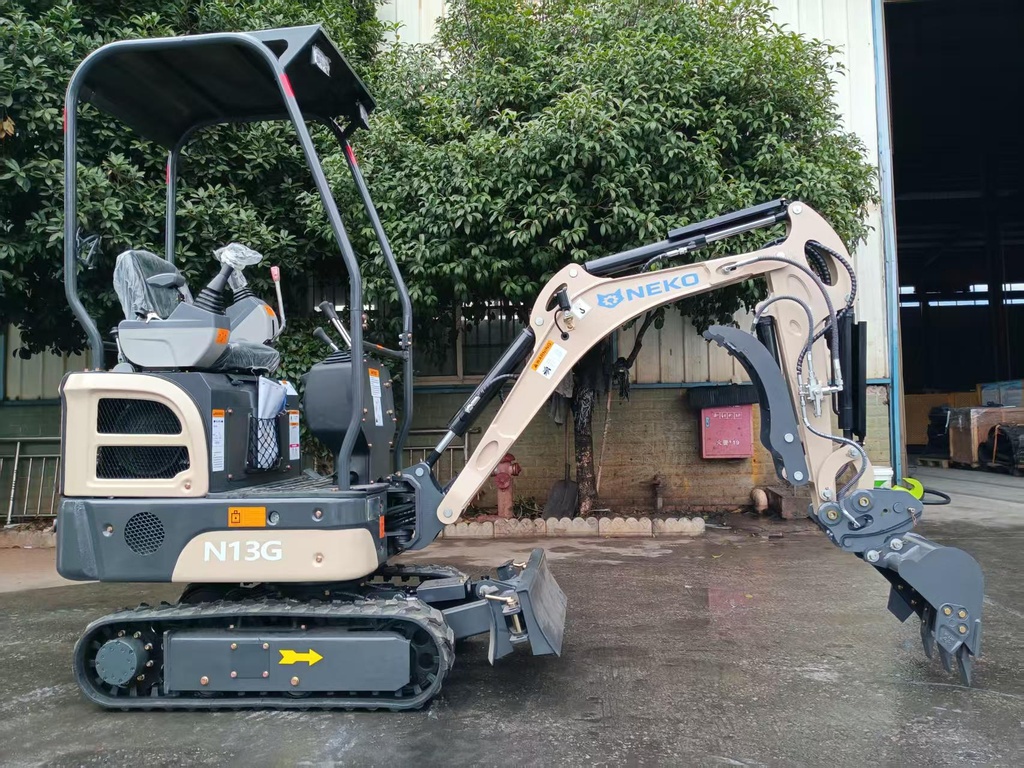

NEKO N13G (GEN.1)
NEKO N13G Gen.1
Built on the proven SHANDING GROUP SD13E platform, this compact excavator is powered by a reliable 10.3 kW Briggs & Stratton gasoline engine, compliant with EPA standards, delivering dependable performance with simplified maintenance.
The machine is equipped with a 15 in (380 mm) standard bucket, optimized for precision work. A boom swing function enables efficient operation in confined environments, while the telescopic undercarriage enhances both stability during operation and accessibility in narrow access conditions.

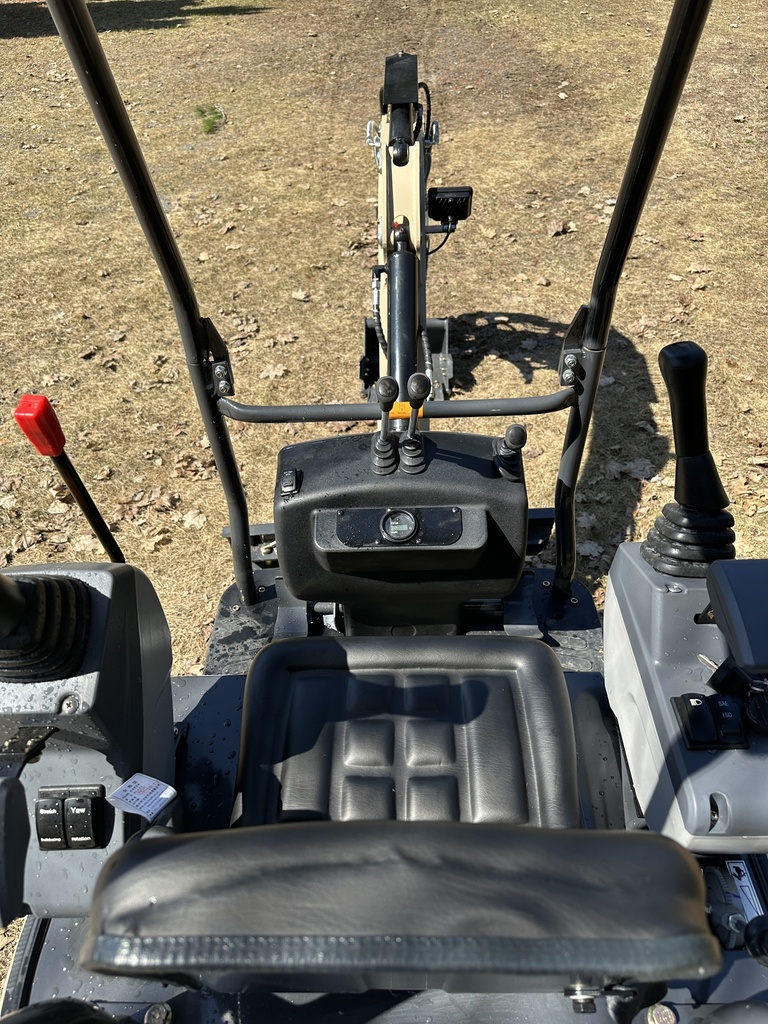

Operator control is delivered through ergonomic joysticks with a lockable ISO/SAE pattern selector, allowing rapid adaptation to operator preference.
Hydraulic & Drive System
- High-efficiency tandem gear pump
- Single-speed travel motor (protected internal routing)
- Swing motor with cushion (buffer) valve for smoother deceleration
- Optimized hydraulic layout for reliability and serviceability
Structural Durability
- Top-mounted boom cylinder for improved protection
- Reinforced and protected arm cylinder
- Clean hose routing for reduced exposure and improved service life
Standard Equipment
- Hydraulic thumb
- Hydraulic quick hitch with integrated safety locking switches
- Telescopic undercarriage
- Boom swing
- ISO/SAE control selector
- Comfort seat with retractable seat belt
Included Attachments
- 15 in (380 mm) tooth bucket
- Ripper
- 24 in (600 mm) mud bucket
Warranty
- 1-year parts warranty
Specifications
| Engine | |
|---|---|
| Engine type | Air-Cooled Gas |
| Engine Manufacturer | Briggs & Stratton |
| Engine Model | XR1200 |
| Configuration | |
|---|---|
| Hydraulic Oil Cooler | yes |
| Thumb | With hydraulic thumb |
| Quick Hitches | With hydraulic Quick Hitches |
| Main Caracteristics | |
|---|---|
| Track type | Rubber |
| Operating weight (kg) | 1148 |
| Final Drive type | Orbital Hydraulic Motor (Hidden) |
| Travel speed in Low mode (km/h) | 0 - 1.8 |
| Travel speed in high mode (km/h) | n/a |
| Auxiliary Hydraulics on arm | Standard |
| Track width (mm/in.) | 180 mm (7.1 in) |
| Dimensions | |
|---|---|
| Track width when retracted (mm/in.) | 830 mm (32.7 in) |
| Track width when extended (mm/in.) | 1040 mm (40.9 in) |
| Overall height (mm/in.) | 2200 mm (86.6 in) |
| Overall Width (meters/inches) | 1030 mm (40.6 in) |
| Overall length (mm/in.) | 2840 mm (111.8 in) |
| Performance | |
|---|---|
| Gradeability (Degree) | 30 |
| Max Bucket digging force kN (lbf) | 6.5 kN (1461 lbf) |
| Maximum digging depth (mm/in) | 1760 mm (69.3 in) |
| Maximum digging height (mm/in) | 3140 mm (123.6 in) |
